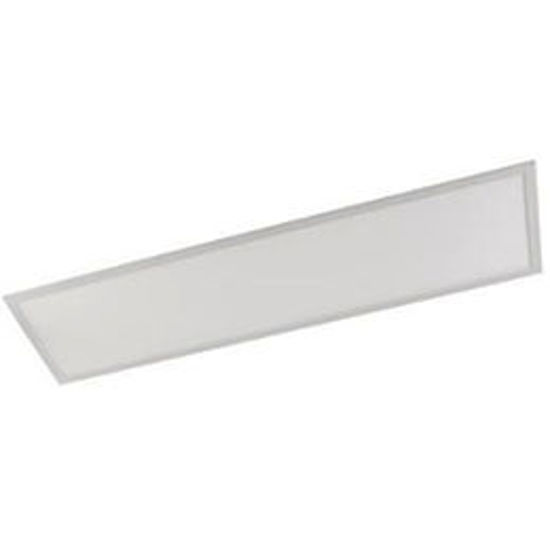

Osram LED Value 32W 300 x 1200 Tri-Colour Panel Luminaires

Part No: 4058075277090
Call for pricing

5 pack

- Osram LED Value 32W 300 x 1200 Tri-Colour Panel Luminaires
- LED panel luminaires with slide switch for adjusting one of selectable light colors
- Color temperature - 3000K 4000K 6500K
- Other LED Panel Luminaires listed here

Product benefits
•  Edge-lit with LCD backlight technology
•  Low flicker light thanks to special electronic control gear
•  Elegant design thanks to slim seamless white frame made of aluminum

Areas of application
•  Hospitals
•  Office areas
•  Retail

Product features
•  Aluminum housing, PMMA diffuser
•  High luminous efficacy: up to 100 lm/W
•  Three light colors selectable via slide switch
•  RCM marked, CB test certificate
•  Color rendering index Ra: > 80
•  Power factor: > 0.9
•  Lifetime: up to 30,000 h

Technical Data

Electrical data
Nominal wattage32.00 W
Nominal voltage220…240 V
Power factor λ>0.90
Photometrical data
Color temperature3000/4000/6500 K
Color rendering index Ra≥80
Light color (designation)Warm White/Cool White/Daylight
Luminous flux3200 lm
Luminous efficacy100.0 lm/W
Standard deviation of color matching≤6 sdcm
Light technical data
Beam angle120 °
Dimensions & weight
Length1195 mm
Width295.0 mm
Height9.0 mm
Product weight2750.00 g
Colors & materials
Product colorWhite
Housing colorWhite
Body materialAluminum
Additional product data
Mounting typeRecessed
Mounting locationCeiling
Capabilities
DimmableNo
LED module replaceableNot replaceable
Certificates & standards
Type of protectionIP20
Protection classII
