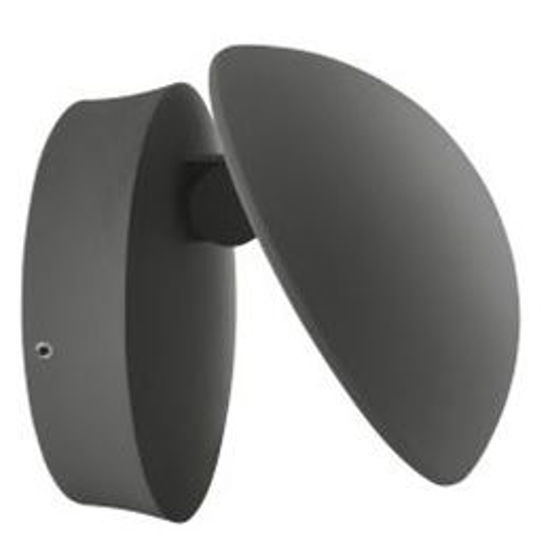

Picture of LEDVANCE LED 13W/3000K IP54 Outdoor Facade Indirect

LEDVANCE LED 13W/3000K IP54 Outdoor Facade Indirect

*
Call for pricing

- LEDVANCE LED 13W/3000K IP54 Outdoor Facade Indirect
 - Luminaires with rotatable head and indirect light
- Available in Gray and White colours

Product benefits
Energy-efficient thanks to LED technology
5 years guarantee
Easy and quick installation
Homogeneous light output

Areas of application
Outdoor
Building facades
Decorative illumination

Product features
Bright and functional outdoor LED luminaires
Type of protection: IP54
Die-cast aluminum housing
Available in two housing colors: white and dark gray
Swivel angle: 90°
Diffuser made of opal PMMA

Equipment / Accessories
Complete mounting and connecting accessories included





Electrical data
Operating modeMains voltage
Mains frequency50/60 Hz
Power factor λ>0.5
Nominal wattage13.00 W
Nominal voltage220…240 V
Nominal current0.063 A
Max. no. of lum. on circuit break. B16 A75
Max. no. of lum. on circuit break. C10 A96
Max. no. of lum. on circuit break. C16 A60
Photometrical data
Color temperature3000 K
Luminous efficacy35 lm/W
Luminous flux480 lm
Light color (designation)Warm White
Color rendering index Ra≥80
Standard deviation of color matching<6 sdcm
Light technical data
Beam angle240 °

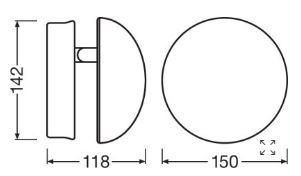

Dimensions & weight
Diameter150.0 mm
Height118.0 mm
Product weight790.00 g
Colors & materials
Product colorGray/ White
Housing colorGray/ White
Body materialAluminum
Cover materialPolymethylmethacrylate (PMMA)
Temperatures & operating conditions
Ambient temperature range-20…+40 °C
Lifespan
Number of switching cycles15000
Lifespan L70/B50 at 25 °C30000 h
Additional product data
Mounting typeSurface
Mounting locationWall
Capabilities
DimmableNo
Type of connectionScrew terminal, 3-Pole
LED module replaceableNot replaceable
Certificates & standards
Type of protectionIP54
Protection classI
Protection class IK (shock resistance)IK06
Glow Wire Test according to IEC 695-2-1-
Photobio. safety group acc. to EN62471RG 0
StandardsCE



Model NoDescription
Colour
4058075075016O Facade IND RD 13W/3000K GY IP54
Gray
4058075075030O Facade IND RD 13W/3000K WT IP54
White
